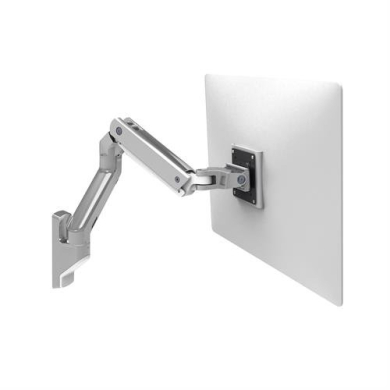

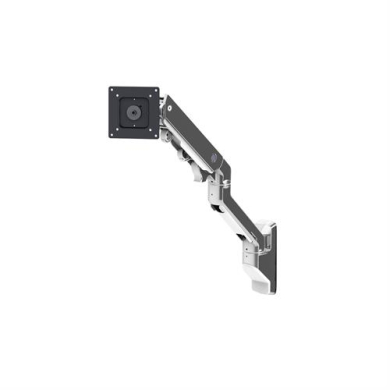

Ergotron HX Wall Monitor Arm (Polished Aluminium)

Ergotron | Display Mount | Wall Mount

VPN: 45-478-026

Indent Basis

SRP (incl. GST)

S$540.00

Screen size ≤ 49" | Weight Capacity: 9.1–19.1 kg §

Heavy Monitor Mount. Choose a monitor arm that’s as adaptable as you. With the HX Wall Monitor Arm, you can reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.
NOTE: To use this arm with the ultra-wide, curved Samsung 49" Odyssey G9, the accessory HX Heavy-Duty Tilt Pivot is required. See Tech Specs.
• Includes arm, extension, monitor pivot, wall mount and monitor mounting hardware.
• Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, apply to wood stud. Also attaches to wall track using bracket 97-091 (order separately)
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas.

§ Weight Capacity: 9.1–19.1 kg. Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 12.7–19.1 kg with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required.
To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216).
* Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base.
† Tilt Range: 70° backward, 5° forward.
‡ Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm.

Read less

View Brochure

Product Specifications

Product Category	Display Mount
Brand	Ergotron
Product Family	Wall Mount
Product Accessory	Main Unit
Product Segment	Edge Solutions
Vendor Part Number (VPN)	45-478-026
Video URL	https://youtu.be/QFHTiSaE-hA
Colour	Polished Aluminium
Web Link	http://www.ergotron.com/zh-sg/products/product-details/45-478#/?buynow=0&color=white
VESA Mount Standard	MIS-D/E/F
Minimum Load Capacity	9.1 kg
Maximum Load Capacity	19.1 kg
Maximum Screen Size Supported	49"
Lift	11.5"
Tilt	75°
Rotation	360°
Warranty	Ten (10) Years
Pan	180°

Purchase with Purchase - Option 1

Ergotron HX Heavy-Duty Tilt Pivot

VPN: 98-540-216

SRP (incl. GST) - S$81.00

Specially designed add-on accessory for the HX monitor arm for displays with depth 6-12".

Ergotron HX Triple Monitor Bow Kit (Polished Aluminium)

VPN: 98-009-026

SRP (incl. GST) - S$460.00

The HX Triple Monitor Bow Kit upgrades an HX arm to hold three monitors and includes a handle for easy positioning.

Ergotron VESA Bracket Adaptor Kit

VPN: 97-759

SRP (incl. GST) - S$70.00

Converts a VESA MIS-D interface to VESA MIS-E/F.

Purchase with Purchase - Option 2

Ergotron Thin Client Mount (Black)

VPN: 80-107-200

SRP (incl. GST) - S$71.00

This versatile holder offers an easy method for integrating a small computer into your workspace.

Ergotron Universal CPU Holder

VPN: 80-105-064

SRP (incl. GST) - S$65.00

Size-adjustable CPU holder fits a wide range of computers. This holder mounts most computers to a variety of surfaces: directly to a wall, or under a desk, or to Ergotron Wall Track, Command Post or selected Carts.
