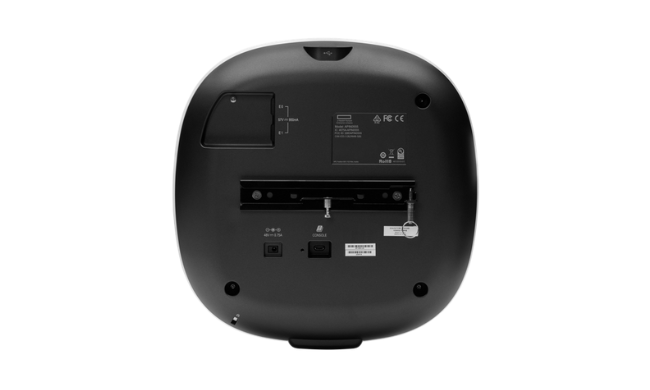

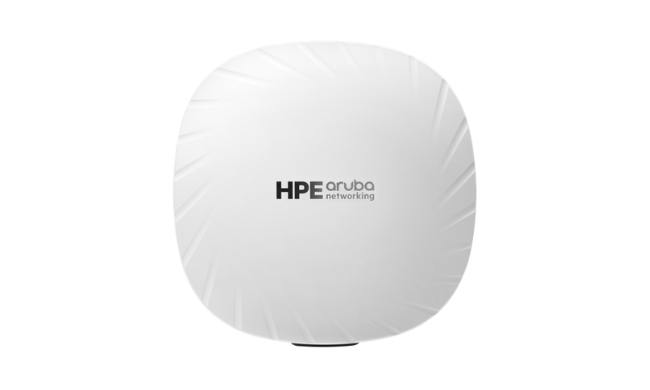

Aruba Networking AP‑555 (RW) Dual Radio 8x8/4x4 802.11ax Internal Antennas Unified Campus AP
Aruba | Access Point | Networking
VPN: JZ356A
PLEASE ENQUIRE
• Wi-Fi antenna: Integrated downtilt omni-directional antennas for 4x4 MIMO in 2.4 GHz with peak antenna gain of 4.3 dBi, and 8x8 MIMO in 5 GHz with peak antenna gain of 5.8 dBi in 5 GHz.
• In tri-radio mode, the peak gain of the antennas for each of the 4x4 5 GHz radios is 5.5 dBi (radio 0L, lower half of 5GHz) and 5.6 dBi (radio 0U, upper half of 5 GHz).
• Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
• Ports: E0, E1: HPE Smart Rate port (RJ-45, maximum negotiated speed 5 Gbps), Serial console interface (proprietary, micro-B USB physical jack), USB 2.0 host interface (Type A connector)
• Certifications: UL2043 plenum rating, Bluetooth SIG, WI-FI Alliance, Wi-Fi CERTIFIED a, b, g, n, ac, ax, WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband, Wi-Fi CERTIFIED Location™
• Regulatory: FCC/ISED, CE Marked, RED Directive 2014/53/EU , EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2, For more country-specific regulatory information and approvals, contact your HPE representative
• Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
• Power consumption: Maximum (worst-case) power consumption (dual-radio operation): DC powered: 32.6W, PoE powered (802.3bt or dual 802.3at): 38.2W,PoE powered (802.3at, IPM disabled): 25.1W, All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 6.0W (PoE powered) or 5.4W (DC powered)., Maximum (worst-case) power consumption in idle mode (dual-radio operation): 15.0W (PoE) or 15.1W (DC), Maximum (worst-case) power consumption in deep-sleep mode: 3.8W(PoE) or 3.6W (DC)
• Mounting: Pre-installed mounting bracket, for use with optional mounting kit, see the ordering guide.
• Radio coverage: AP type: Indoor, dual/tri-radio, 5 GHz and 2.4 GHz 802.11ax 4x4 MIMO, 5 GHz radio (dual-radio operation): Eight spatial stream HE80 (or 4SS HE160) MIMO for up to 4.8 Gbps wireless data rate, 5 GHz radio (tri-radio operation): Four spatial stream HE80 (or 2SS HE160) MIMO for up to 2.4 Gbps wireless data rate, 2.4 GHz radio: Four spatial stream HE40 (HE20) MIMO for up to 1,147 Mbps (574Mbps)
• Weight: 1.57 kg (3.46 lb)
• Dimensions: 58 x 260 x 260 mm (2.3 x 10.2 x 10.2 in)
